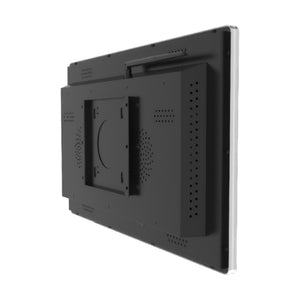

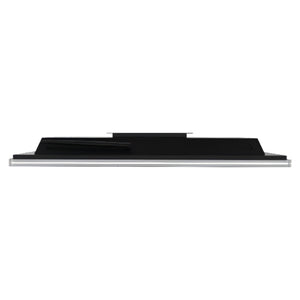

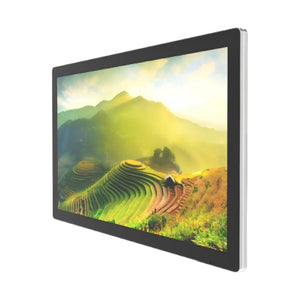

Small Size Wall Mount LCD Digital Signage



Specification of the Screen:

Size: 15.6’’ LCD Screen
Model: OXM15HDMSR8256
Brand: Shenzhen Gemdragon Display Technology CO.,LTD
Resolution: 1920 (RGBW) x 1080 [UHD]
Display size: 345.46(horizontal)×194.81(vertical) mm
Screen size: 388(horizontal)×245(vertical) mm
Brightness (CD /m2) : 250 (Typ.)
Best Angle: full view
Visual Angle: 89/89/89 (Min.)(CR≥10)
Color quantity: 16.7M, 72% (CIE1931)
Refresh frequency: 60Hz
Maximum rated: Storage temperature: -20 ~ 60 °C
                               Operating temperature: 0 ~ 50 °C
Screen type: LCD module, a-si TFT-LCD
Pixel configuration :RGBW vertical strip Haze 1%, Hard coating (3H)
Contrast ratio: 800:1 (Typ.) [transmission]
Optical mode :TN, normally black display, transmission
Response speed :13/5 (Typ.)(Tr/Td) ms
Backlight type :WLED [17S4P], 30K hours, no drive



Windows system specification: Windows 11 I5 A12 (I5 12400), 8G258G

Processor

System Chip set

Intel® H610-C Express



CPU Model

Support Intel® I3 I5 I7 12th/13th generation CPU

Memory module

Technology

1 x SODIMM DDR4



Memory

DDR4-4G;DDR4-8G;DDR4-16G;DDR4-32G;

Show

Front-end output

DP-Max.3840 x 2160 4K@60Hz





HDMI-Max.3840 x 2160 4K@30Hz



JAE end

HDMI-Max.3840 x 2160 4K@60Hz

Graphics

Model

inter® HD Graphics

Harddisk

SSD

M.2 2280

WIFI

Interface

M.2 PCIe 2230



Support

Support WI-FI5/WI-FI6 standard 2.4g (optional 2.4+5g dual-band)

I/O Interface

JAE Connector

1(JAE TX25 80-PIN)



LAN

1x10/100/1000Mbps(RJ45)



USB

3*USB3.0 & 3*USB2.0



Type-c

USB3.0



SUPER IO

Realize serial port function (default TTL)





Fan speed control

Extension interface

Mini-PCLe (built-in)

1*M.2 2230(WI-FI)





1*M.2 2280(SSD)

Power Requirements

Input voltage

DC-IN 19V5A

Physical properties

Size

180x 195x 30MM (180x 195x 42MM-optional)



Shell material

Iron Sheet

Heat dissipation

Cooling method

All-copper double ball fan cooling

Environment

Operating temperature

-20~60



Relative humidity

10%~90% non-condensing

Software Development Kit

Operating system

Windows® 10 Windows® 11



15.6inch- Standard Design: Reference

What is the Warranty policy ?

During 2 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. For life-time maintenance (out of 3 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts. The man-made damage and misusing damage is not under warranty.
