Ultra-Thin LCD Floor Standing Digital Signage Display Android System | Gemdragon
| Specification | |||
| Screen | |||
| Panel type | TFT LCD | Panel Size | 32-85 inch size |
| Aspect Ratio | 16:09 | ||
| Brightness | 500cd/m² | ||
| Contract Ratio | 1400:01 | ||
| Resolution Ratio | 1920*1080/3840x2160 choose | ||
| Back light | WLED backlight | ||
| Visual Angle | Horizontal 178/Vertical178 | ||
| Pixel Pitch | 0.630x0.630mm(HxV) | ||
| Color Components | 16.7M | ||
| Response Time | 6ms | ||
| Power Supply | Input:AC110-220V-50/60Hz | ||
| Life of Panel | 60000Hours | ||
| Speaker | 2*5W | ||
| Material | Metal case SPCC+Tempered Glass | ||
| Color | Black/Sliver/Customize | ||
| Power Supply | AC100-240V,50/60Hz | ||
| Max power consumption | ≤220W | ||
| Operation Temperature | 0℃~50℃ | ||
| Storage Temperature | -20℃~60℃ | ||
| Android | |||
| CPU | RK3568,Quad core ARM-A55,2.0GHz Optional | ||
| GPU | Mali-G52 | ||
| Memory | DDR 4GB(8/16G Optional) | ||
| Built-in memory | EMMC32G(16G/32G/64/128G Optional) | ||
| operating system | Android 9.0/10.0/11.0/12.0 system Optional | ||
| Decoding resolution | Top support 2160P | ||
| Video format | support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 and so on. | ||
| Play mode | Support a variety of playback modes,such as loop,timing,playback,etc. | ||
| Network support | Ethernet,WiFi,(BT optional) | ||
| RTC | support | ||
| Time switch | support | ||
| System upgrade | Support network upgrade,USB/TF card upgrade,computer upgrade | ||
| Hardware interface | |||
| DC | 12V/DC Input | ||
| HDTV | HDTV2.0 Top support 4K@60HZ output | ||
| LVDS | Dual 8-bit LVDS+backlight interface,up to 1920X1080 output | ||
| EDP | EDP supports up to 1920X1080 output | ||
| Memory Card | TF Memory Card | ||
| USB | 6/5 HOST USB,1OTG USB | ||
| Pin | 3/2 TTL serial ports,1 debug serial port | ||
| IIC | 1,IIC interface(3.3 V) | ||
| 10 | 4,IO interface (3.3 V) | ||
| Remote and lights | 1*remote,1*red light,1*green light | ||
| Ethernet | 10M/100M Adaptive Ethernet | ||
| Wireless | Wifi-2.4 g support (extensible BT-4.0) | ||
| Trumpets | Support for horn interface,maximum support for two 825W horn output | ||
| Audio | Support for left and right channels,MIC interface | ||

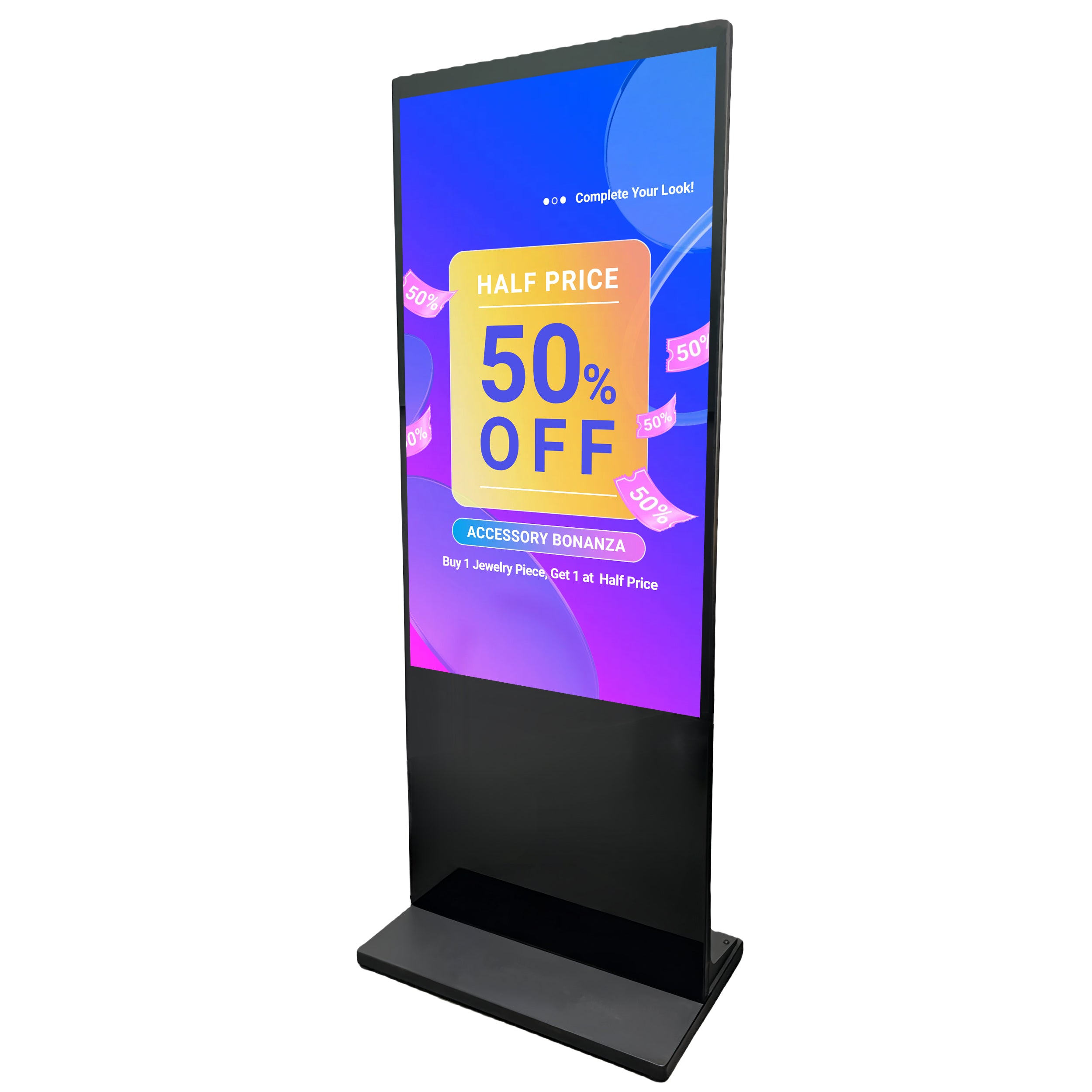

Ultra-Thin LCD Digital Signage Display
Our Ultra-Thin LCD Digital Signage Display is a cutting-edge solution for businesses looking to enhance their interactive advertising and information dissemination. With a range of sizes from 32" to 85", our displays offer versatility and performance that can transform any space into a dynamic environment for engaging customers and visitors.
Key Specifications:
Display: High-quality TFT LCD with WLED backlight
Sizes: Available from 32" up to 85"
Resolution: Choose between Full HD (1920*1080) or 4K UHD (3840x2160)
Brightness: 500 cd/m² for vivid visuals even in well-lit areas
Contrast Ratio: 1400:1, ensuring deep blacks and bright whites
Viewing Angles: Wide viewing angles of 178° horizontal and vertical
Response Time: Fast 6ms response for crisp motion graphics
Power Supply: AC110-220V-50/60Hz with a maximum consumption of ≤220W
Operating System: Android system with optional versions from 9.0 to 12.0
Connectivity: Full support for Ethernet, WiFi, and optional Bluetooth
Product Features:
Sleek and Modern Design: The ultra-thin metal case with tempered glass offers a stylish look that fits any modern interior.
Interactive Touch Options: Optional infrared touch functionality enhances user engagement and interactivity.
Customizable: Available in black, silver, or custom colors to match your branding.
Versatile Applications: Ideal for use in retail, corporate, educational, and healthcare settings.
OEM/ODM Support: Tailor the product to your specific requirements with our OEM/ODM services.
Product Description:
Our LCD Totem Interactive Information Kiosk is more than just a digital signage display; it’s an immersive touch message provider that captivates and informs. Whether you’re showcasing products in a retail store, delivering presentations in a corporate setting, or providing interactive learning in educational institutions, our displays are designed to meet the demands of any environment.
For detailed information and to explore our full range of digital signage solutions, please visit our product detail page.
| Screen Size |
32 inch, 43 inch, 49 inch, 55 inch, 65 inch |
|---|---|
| Touch Function |
Without Touch Function, With Touch Function |
