Super Thin LCD Floor Standing Digital Signage Kiosk Android System | Commercial Displays and Screens
Super Thin LCD Floor Standing Digital Signage Kiosk Android System | Commercial Displays and Screens
Specification

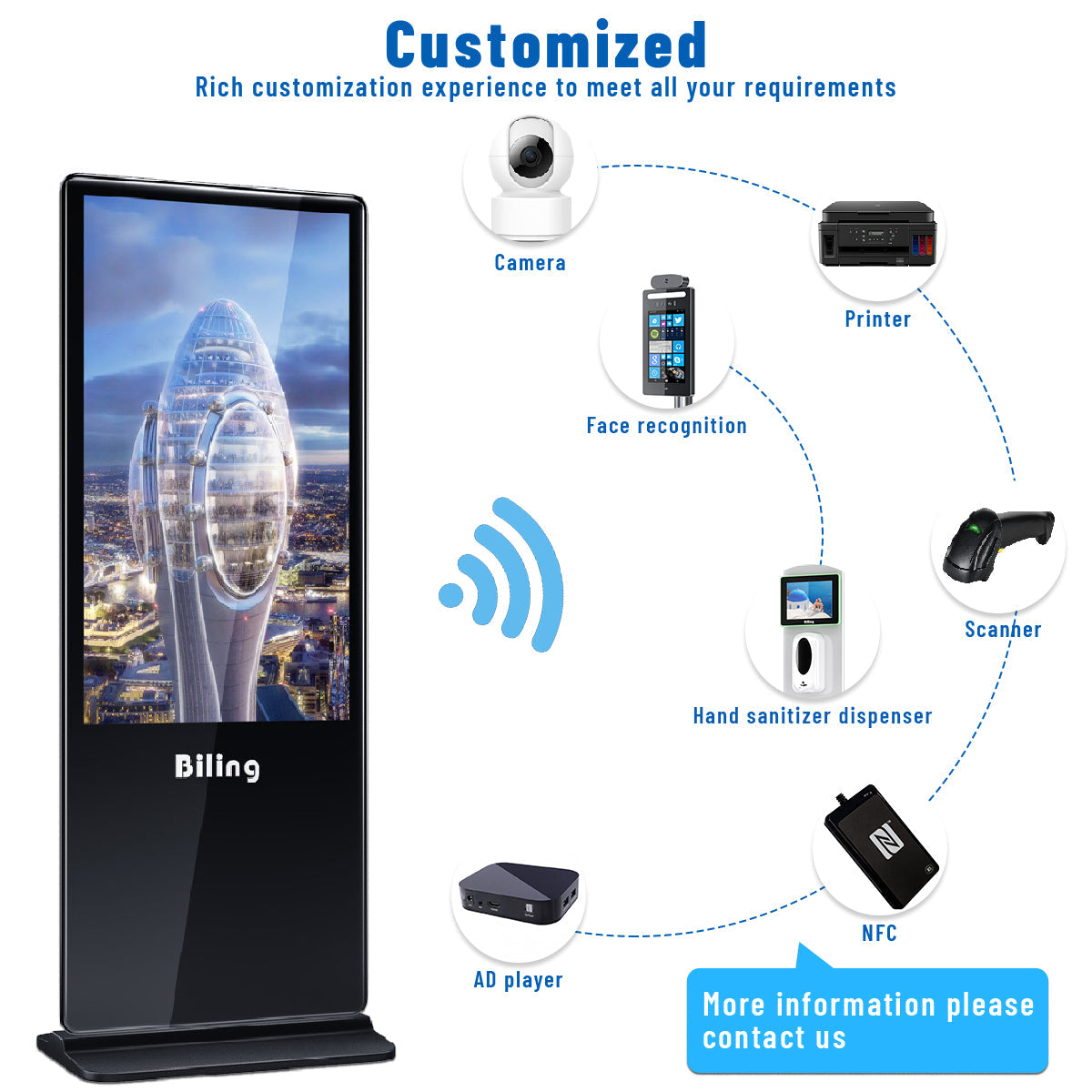

Support OEM / ODM Infrared TOUCH ( optional ),
Thickness :3cm(or 2cm)
32 / 43 / 49 / 55 / 65 / 75 inch Screen can support
Stand-alone / Android / windows version optional

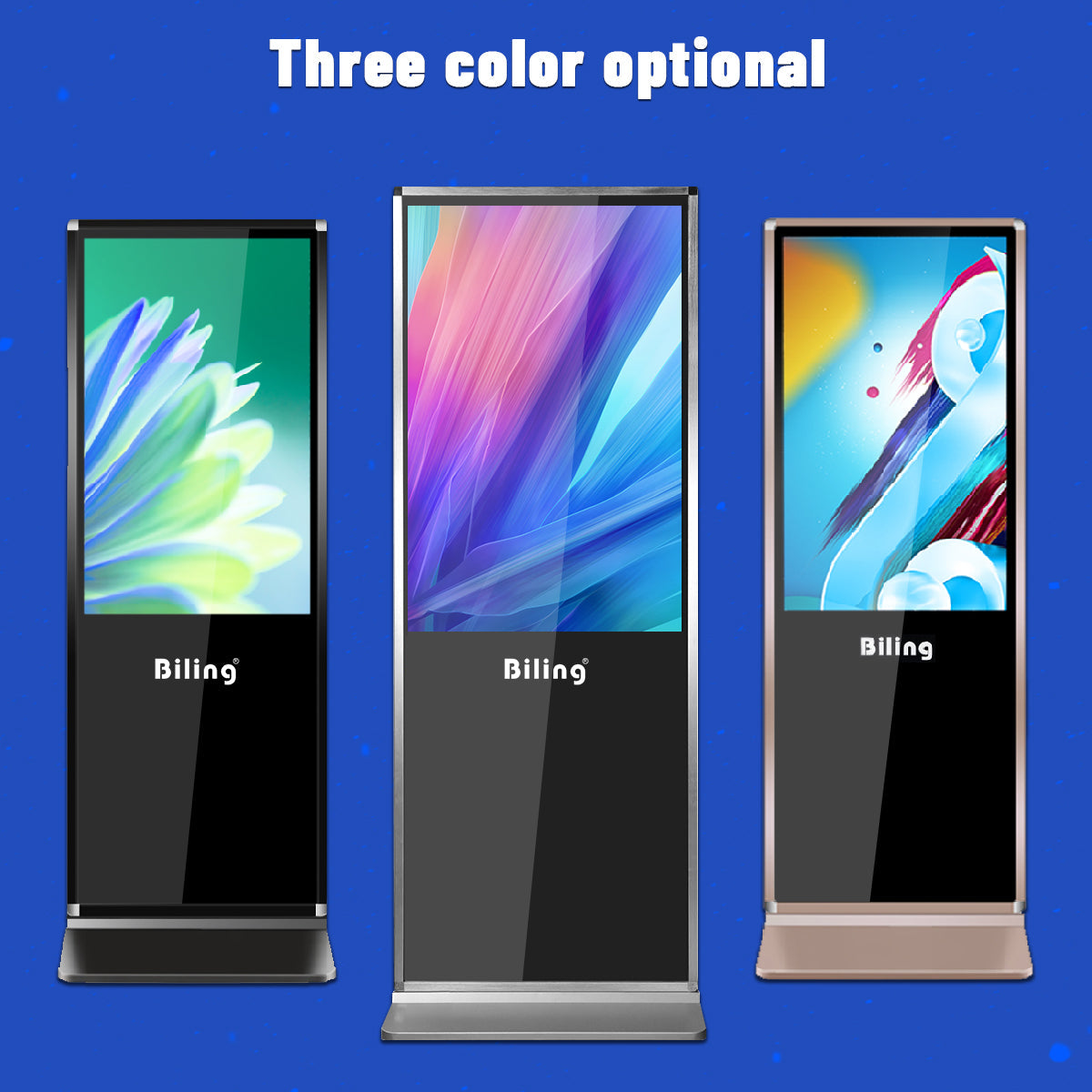

black , gold , silver ( optional )

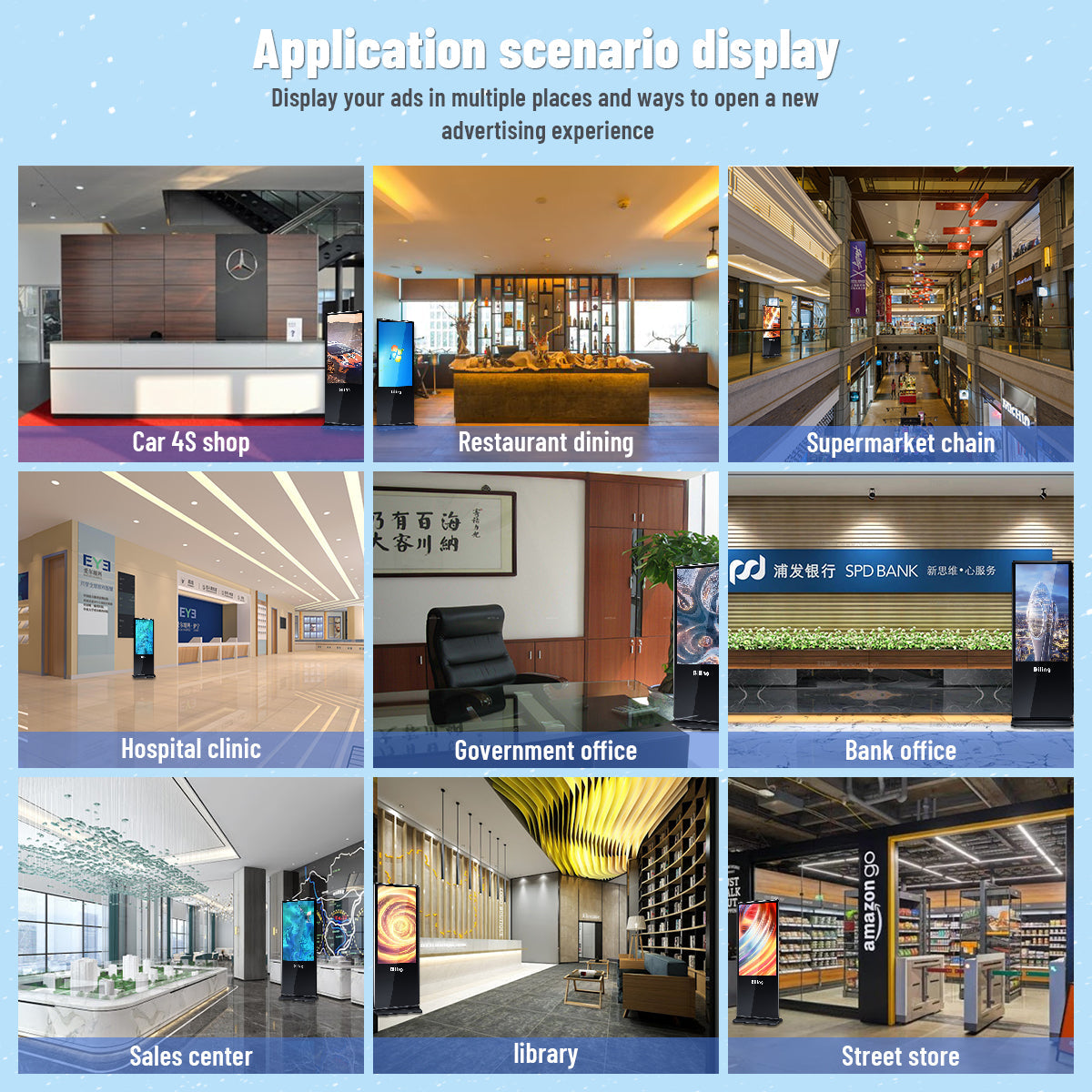

Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
Hot selling Kiosk advertising players
Wide View Kiosk Digital Signage
|
Screen configuration
|
|
|
Screen size
|
32" (43 / 49 / 55 / 65 / 75 / 86 / 98 / 100 inch Screen can support)
|
|
Resolution
|
1920 (RGB) × 1080 [FHD] / 2K / 4K UHD
|
|
Display size
|
941.184 × 529.416 mm (H × V)
|
|
Visual size
|
945.18 × 533.42 mm (H × V)
|
|
Brightness (cd/m2)
|
300 - 450 (Typ.) (Please contact us for higher brightness requirements)
|
|
Best angle
|
full view
|
|
Viewing angle
|
89/89/89/89 (Min.) (CR ≥ 10)
|
|
Pitch
|
0.227mm (H) x 0.227mm (W)
|
|
Number of colors
|
16.7M/1.07B, 95% [CIE1931]
|
|
Screen weight
|
6.30Kgs (Typ./Max.)
|
|
Refresh rate
|
60Hz
|
|
Signal system
|
LVDS (2 ch, 10-bit), terminal, 51 pins
|
|
Supply voltage
|
12.0V (Typ.)
|
|
Maximum rating
|
Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
|
|
Screen type
|
LCD module, a-Si TFT-LCD.
|
|
Pixel configuration
|
RGB vertical strip
|
|
Appearance size
|
975.5 × 582.2 × 10.5 (H × V × D)
|
|
Surface treatment
|
matte (Haze 3%), Hard coating (1H)
|
|
Contrast ratio
|
1100 : 1 (Typ.) [Transmission]
|
|
Optical mode
|
IPS, normally black display, transmissive
|
|
Response speed
|
6 (Typ.) (G to G) ms
|
|
Backlight type
|
WLED, 30K hours, no drive
|
|
Motherboard configuration(Android)
|
|
|
CPU
|
RK3568, Quad-core, the main frequency up to 2.0GHz, Android11
|
|
GPU
|
Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1
|
|
Internal storage
|
Standard with 2GB, optional 4GB
|
|
Built-in storage capacity
|
The eMMC is standard with 16GB optional 32GB
TF Card Extension (available for extension SSD) |
|
Network
|
Support RJ45 R / A 100 trillion Ethernet, support Ethernet;
Support the 2.4GHz Wi-Fi; support the Wi-Fi 802.11b/g/n protocol; .2Support Bluetooth 4, mobile phone Bluetooth send program. |
|
Picture orientation
|
Support 0 degrees, 90 degrees, 180 degrees, 270 degrees, manual rotation; optional gravity sensing sensor, support automatic
rotation |
|
Displays the interface
|
1 * LVDS interface (single / dual, 6 bit / 8 bit), support 3.3V / 5V / 12V power supply
1 EDP interface, 1 HDMI 1-way V-By-One interface and supports 1080P output Reserve a 1-channel HDMI IN interface, which can be equipped with a small board The onboard backlight control supports the 12V backlight power supply |
|
Touch screen
|
Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nanomembrane touch, multi-point sound wave
Touch, multipoint optical touch, etc... |
|
RTC
|
Built-in real-time clock function
|
|
USB
|
1 USB-3.0 HOST, 1 USB 3.0 OTG, 5 extended USB port
|
|
Infrared
|
Infrared receiving seat, support for infrared remote control function
|
|
LED
|
1 * Power Status LED (green), 1 * System LED (green, default flashing)
|
|
Operating system
|
Android 11
|
|
Audio frequency
|
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3 GPP and other formats
|
|
Video frequency
|
Support H.265,H.264,VP8, MAV , WMV , AVS , H.263, MPEG4 and other video formats
|
|
|
Support JPG, BMP, PNG and other picture formats
|
|
System management
|
Original ecological Android system, open root permission, can be customized product development
|
|
Infrared touch
|
|
|
Material
|
Glass thickness
|
|
Surface abrasion strength
|
strong, determined by the glass surface
|
|
Homogeneity
|
good
|
|
Touch the parameter
|
|
|
The number of times the theory is determined by the degree of glass wear
|
|
|
Design life
|
more than 5 years
|
|
Touch the fastest response speed
|
6ms
|
|
Touch the average reaction speed
|
8ms
|
|
Electrical parameters
|
|
|
Working voltage
|
4.5 ~ 5.5Vdc
|
|
Working current
|
≤120mA
|
|
Power
|
≤ 900mW
|
Indoor Network Digital Signage And Display
| Screen Size |
32 inch, 43 inch, 49 inch, 55 inch, 65 inch, 75 inch, 85 inch, 86 inch |
|---|---|
| Touch Function |
Without Touch Function, With Touch Function |
