55’’ Single Side Infrared Touch Ultra-thin Standing Digital Signage
Features:
Screen size: 55"
Screen Model: GD-STLS55
Resolution: 3840(RGBW)×2160 [UHD]
Display size: 1209.6 × 680.4 mm (H×V)
Visible size: 1214.6 × 685.4 mm (H×V)
Screen direction: Portrait;
Screen type: LCD module, a-Si TFT-LCD
Brightness (cd/m2): 500 (Typ.)
Best angle: Full view
Viewing angle: 178/178 (Min.)(CR≥10)
Number of colors: 16.7M/1.07B, 68% [CIE1931]
Refresh frequency: 60Hz
Maximum rating: Storage temperature: -20 ~ 60 °C ;
Operating temperature: 0 ~ 50 °C
Pixel configuration: RGBW vertical strip
Surface treatment: matte (Haze 1%), Hard coating (3H)
Contrast: 1300:1 (Typ.) [Transmission]
Optical mode IPS, normally black display, transmissive type
Response speed:8 (Typ.)(G to G) ms
Backlight type: WLED, 50K hours, no driver
●Design: Ultra-thin size, the whole thickness is 3cm
●Color restoration is more realistic;
●Colour:Black,Sliver,Rose gold,can customize other colour;
●Brightness: 500nits;
●lnstallation: floor stand or stand with wheels (Option);
●System Version: Windows 10 OS;
●lnterface: HDMI IN *1; RJ45(LAN) *1; USB 2.0 *2;
●Touch screen option:Infrared Touch;
●Application:restaurant,shopping mall,coffee shop,movie theater;
●Long life, 7*24 hours of work, up to 60 thousand hours or more;
●High resolution, high contrast, high brightness, great improvement of image level, and better performance of detail;
●By using LED fog surface black light, the video image is more beautiful and the three-dimensional feeling is stronger;
●Built-in speakers: 8Ω5W Stereo speakers *2 pcs;
●Input the voltage:AC100-240V~(+/-10%), 50/60Hz;
●Rated power consumption(W): 125W.
Design and Drawing Size: mm
The specification of Windows i5 with License
Main features
★ Support 4th generation CPU: I5-4200M;
★ HDMI output supports 4K display.
★ Fast, supports DDR3 1600 low voltage (1.35 V) memory.
★ Support HDMI+VGA+LVDS three-screen display, can display the same and different.
★ Onboard 6COM interface, support COM port to take power 5V, 12V, support a 1*485
★ Onboard 1*MINIPCIE, support WIFI/3G/4G, 1*MSATA, support MSATA disk.
★ Gigabit network card, dual network optional
★ Support dual eight 24-bit LVDS
★ Optional support for OPS extension
|
Specification of Processor |
|
Chipset : Haswell-U High-speed chipset ; Core I5-4200M dual-core 2.5G, maximum turbo frequency 3.1G;
AMI BIOS supports write protection. Power on and start up, timed start up, remote switch on and off equipment intelligent identification
System monitoring/watchdog
Memory Support DDR3 generation 1333/1600 memory (onboard 4G memory, 8Goptional) extended bus 2*MINI- PCIE expansion slot, supports Bluetooth, WIFI, 4G, MSATA SSD: 128GB
Audio frequency interface
Display interface
I/O scaling
Network interface Operating Environment
Hard disk storage
Windows WIN7/8/10,LInux |
CMS Software Option : LAN & CLOUD:
Application:

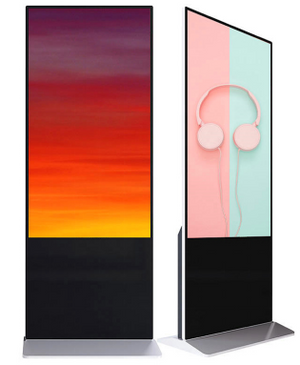

The Picture of Slim floor standing display:
Packing: Wooden case packing (Optional: flight box)
The Bulk production:
Customers use case:
What is the Warranty policy ? --More term i will send by document
Quality ensure & Return Policy
---------More better price on Bulk qty order
---------3 years long guarantee 100%
If have problem in 3 years we can undertake to repair or send accessaries parts for change to you
if goods arrive with problem we can change new one to you and undertake the ship fee that you send back the bad item back to us)
---------100% test before shipment and Fast shipment after payment.
The certifications: ISO 9001:2015 certificate & CE
